WCAG 1.1.1: Non-Text Content (Controls)

Back to all WCAG criteria

OVERVIEW

Effort:

  • Complexity:Easy
  • Duration:Fast

Important for:

Developement

What is it about?

Graphical controls, such as clickable icons or images, need a name so that screen reader users can understand their function. This can be provided, for example, through the alt attribute or an aria-label.

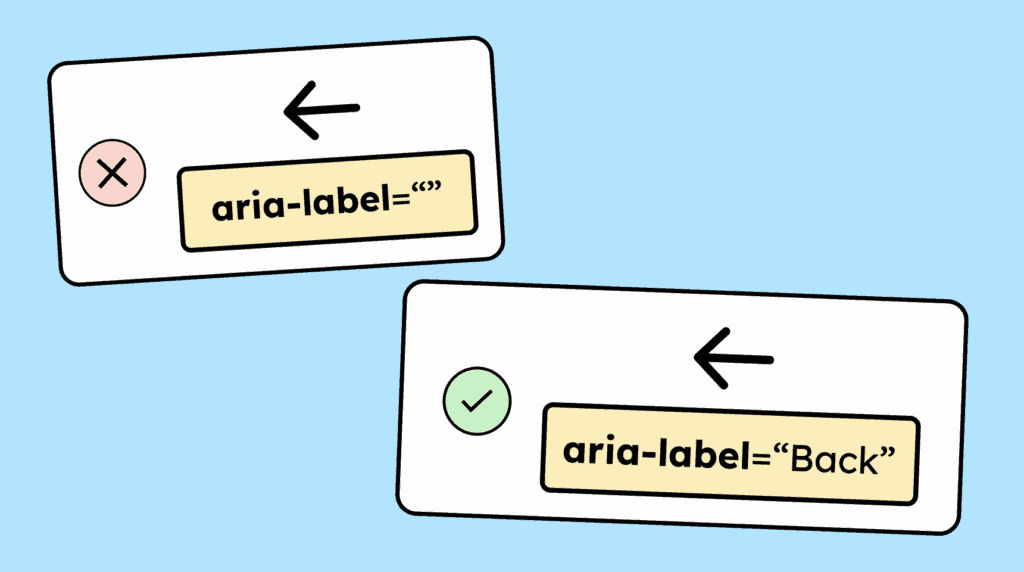

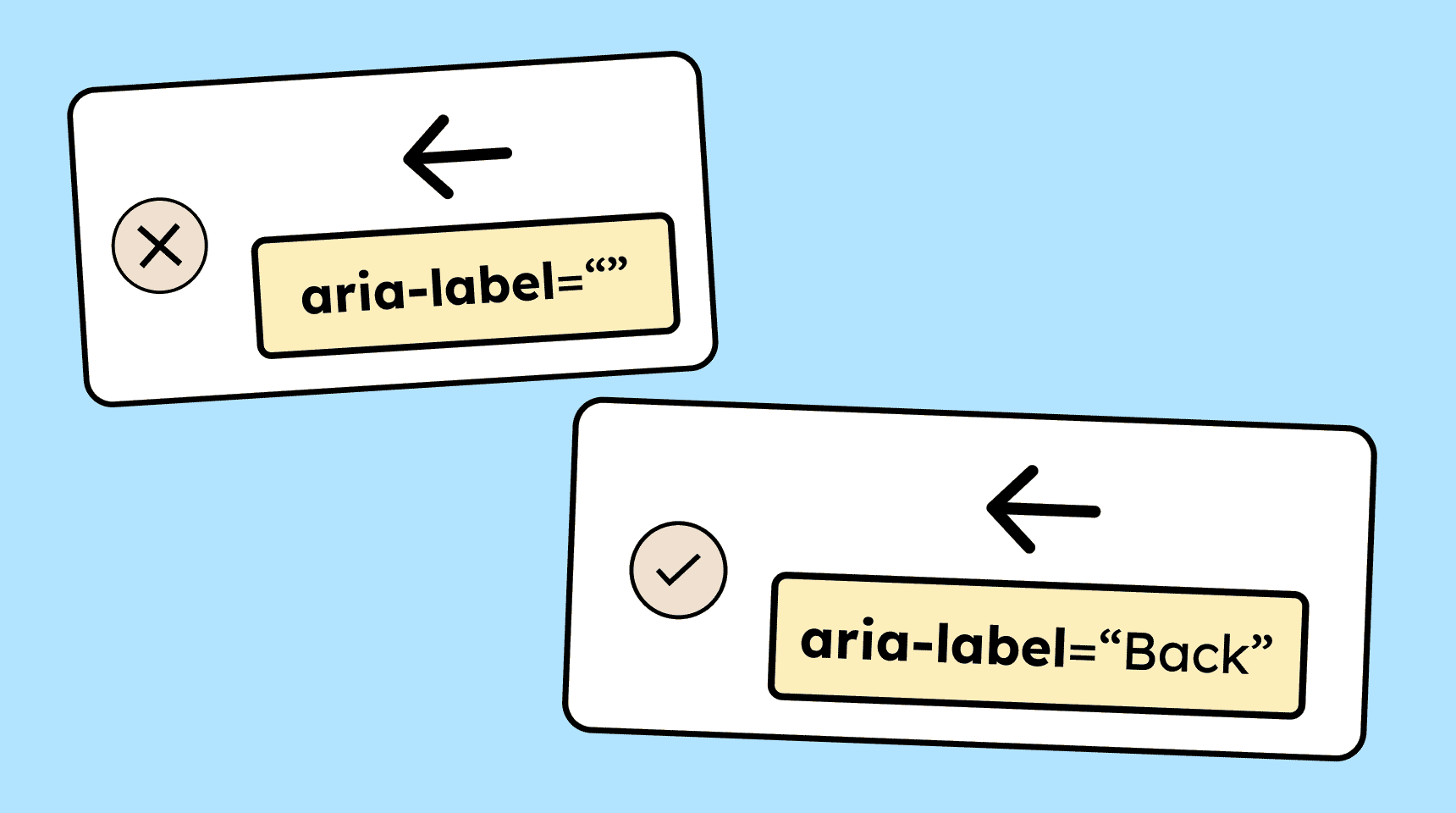

Illustration comparing an unnamed back-arrow icon button with a properly labeled one. The first version has an empty aria-label and is marked wrong. The second version uses aria-label='Back' and is marked correct, showing that graphical controls like icons need a programmatic name so screen reader users understand their function.

How to

Depending on your situation, you can implement one of the following options to meet the criterion. More details can always be found in the linked WCAG techniques.

  • **Alt-text:** Illustration of an image map: a round figure holding a camera and a pen, with code examples below showing an `` element and a `` containing two clickable areas labeled “camera” and “pen.”

    Provide text alternatives for image maps

    Image maps are images with individual clickable areas.

    The entire map needs a text alternative, and each clickable area within the map also requires one. The text alternative for the map should describe the whole image. The text alternatives of the individual clickable areas should describe the image and/or the function (for example, the destination of the link). Here is an example of an image map with alternative texts.

    Technique(s):

  • Illustration of a contact form showing a surname input field with a visible label above it. The label is correctly linked to the input using the HTML for attribute.

    Add labels to form fields

    Form fields (<input>) are essentially just graphical rectangles and, by default, have no name in the accessibility tree. This means a screen reader user will only hear “text field” if the field has no label.

    To give a form field a name, we recommend using a <label> and connecting it to the field via the for attribute. This provides the form field with a visible label that is also programmatically identifiable for screen readers. This also helps meet WCAG criterion 1.3.1 Info and Relationships (labels for form elements).

    Technique(s):

    Notes

            • Hint: Logos as interactive elements

              If the logo links to the homepage, we recommend including both the company name and the destination of the link in the text alternative.

              Example: “Gehirngerecht logo. Links to the homepage.”

            • Hint: Handling SVGs

              You can give an SVG a name using the <title> tag.

              Because screen reader support is sometimes unreliable, the title should also be connected to the SVG using aria-labelledby. In addition, the SVG should include the attribute role="img".

              Example:

              <svg role="img" aria-labelledby="title1">
              <title id="title1">A red, …</title>
              </svg>

            • Text alternative for a linked image. Is only the function important, or is the image itself also important?

              Hint: Text alternatives for interactive images

              For interactive images, the question is what exactly needs to be included in the text alternative:

              • Is only the function important? Then only the function needs to be described. Example: social media icons that link to platforms like YouTube or Instagram.

              • Is the image itself important and the link? Then both must be described. Example: an image has a zoom function and enlarges when clicked. In this case, the text alternative must describe both the image and the function. (Whether such zoom functionality provides good usability is another question entirely.)
